How Plant Machinery Trackers Work: GPS for Construction Equipment

A plant machinery GPS tracker obtains position from satellites and sends readings over cellular to a receiving platform. What it reports also depends on power, installation and the available data source. True engine hours need a verified machine interface and platform mapping; an agreed ignition signal may provide powered-on time, and without a verified source hours may be unavailable.

Match plant tracking hardware

Procurement checklist

Module

How plant machinery trackers work

A positioning receiver fixes location from satellite constellations; a cellular modem sends readings; a power circuit manages supply and sleep behaviour; and an interface may read CAN/J1939 or serial data. Booms, cab roofs, spoil heaps and quarry walls make placement part of the specification.

True engine hours require a verified machine or source interface and platform mapping. If an agreed power or ignition signal is available and configured, a tracker may report powered-on time; without that verified source, hours may be unavailable.

Start with the decision

Key decisions for plant tracking hardware

Start with the machine and site

Vibration, wash-down, blocked sky and long idle periods change the specification.

Key point: The mounting position matters as much as the device class.

This page explains the mechanics — what is inside a plant machinery tracker, how each part behaves on a construction site, and which device class fits which machine. For the wider equipment category, start with GPS trackers for equipment.

A tracker on an excavator has a harder job than one in a van. It has to survive vibration and wash-down, find sky through a boom and a cab roof, and read a machine that may expose nothing at all.

Machine and site conditions

What makes construction machinery different from vehicles

CheckRoad vehicleConstruction machine
Supply voltagePredictable 12V or 24V.Often wider and noisier; some plant goes beyond 24V.
Sky viewWindscreen or dash is usually clear.Steel cab, boom and spoil obstruct; antenna position matters.
EnvironmentCabin conditions and occasional wash.Vibration, dust, pressure wash-down and wide temperature swing.
Duty patternRuns most days and returns to a depot.Weeks of work then weeks parked, often at a customer site.
Data exposedOBD or FMS is fairly common.Varies by machine and year; check model by model.

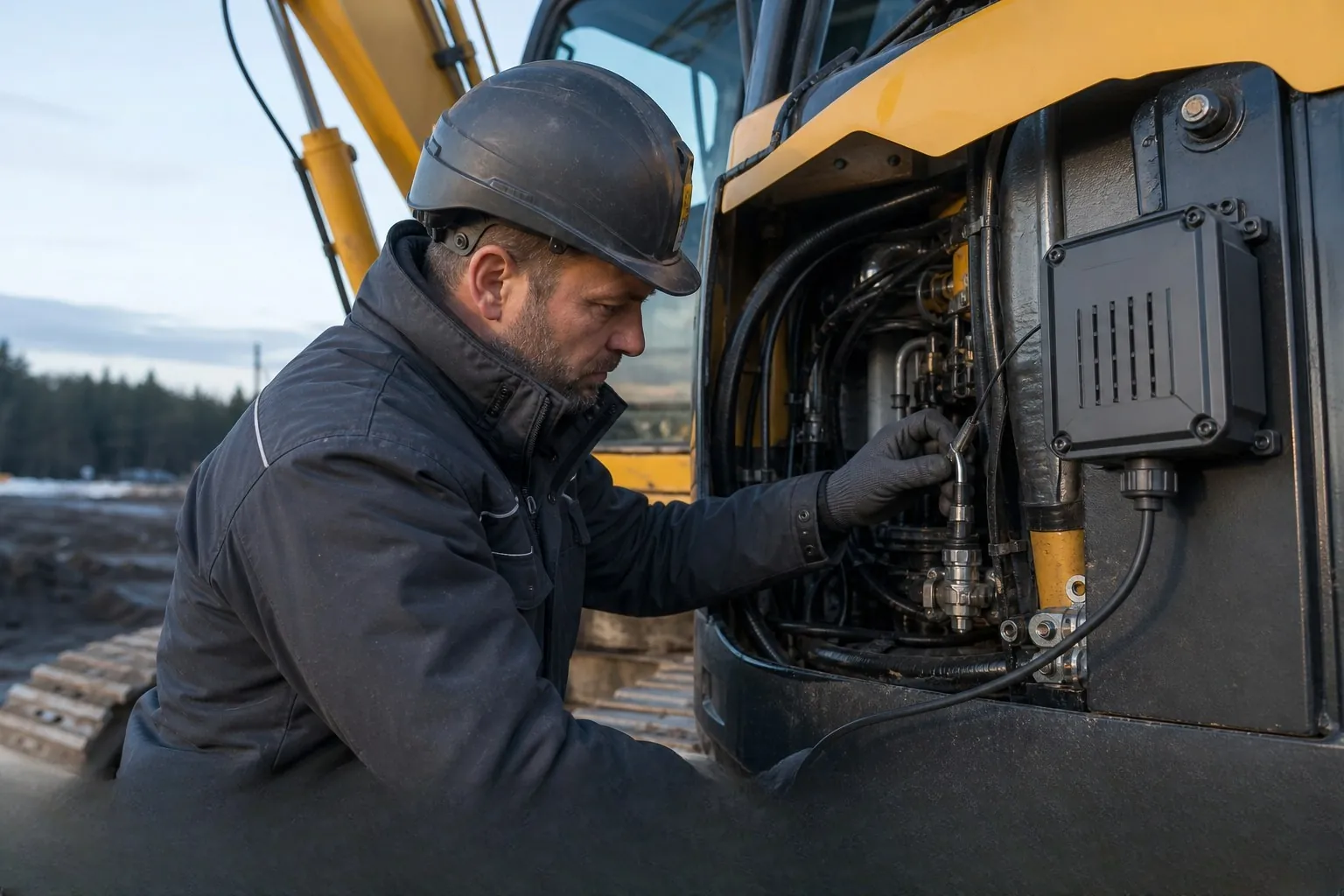

Tracker being installed in the engine bay of an excavator
On an excavator the unit needs protection from wash-down and theft while retaining an antenna path to sky.
A300 industrial data gateway product

A300

A wired gateway with CAN/J1939 such as A300, when hours and machine state are the point.

A300 sample · £195
Estimated shipping included. UK import VAT, duty and clearance charges are paid by the buyer. Confirm destination and configuration before ordering.

Buy an A300 sample

Request a bulk quote

A700 outdoor wide-voltage tracker product

A700

An outdoor unit with wide voltage input such as A700, when exposure matters more than machine data.

Explore A700
GT76 battery asset tracker product

GT76

A battery unit such as GT76, because no permanent power exists.

Explore GT76
Buyer checks

Choosing between device classes on a site

  1. Excavator, dozer or crane with a bus: a wired gateway with CAN/J1939 such as A300, when hours and machine state are the point.
  2. Generator, light tower or pump: an outdoor unit with wide voltage input such as A700, when exposure matters more than machine data.
  3. Attachment, bowser or non-powered plant: a battery unit such as GT76, because no permanent power exists.
  4. Site vans and support vehicles: an expandable terminal such as C003F, keeping the road fleet on the same platform as the plant.

A mixed site therefore runs two or three device classes rather than one. The supplier comparison path is described in how to compare, test and order from a Chinese supplier.

Choosing a tracker for diggers and excavators

Start with the machine model, operating country and the information your team needs. Machine size alone does not determine the tracker. Check the available power, mounting position, antenna reception and receiving platform before selecting hardware.

  • Mini diggers: decide whether location and movement records are sufficient, then verify power availability during work and storage.
  • Excavators: if engine hours or machine status are required, identify the controller or other agreed data source and validate the available fields on the exact machine.
  • Wheeled loaders: separate location reporting from utilisation claims. Confirm how each requested field is measured before using it for maintenance or hire records.

For a verified CAN/J1939 data requirement, assess the A300 gateway against the machine interface. For periodic reporting from an asset without fixed power, assess the GT76 battery tracker against the reporting interval. Record the findings using the sample validation checklist.

On-machine sample validation

What the data is actually used for on site

Record the mounting point, when a position was obtained and when the platform received it, the power or sleep state, and the source and reading for any working-hours data. Complete this blank record using observations from your own machine trial. Download the machinery installation data record (CSV) to keep those observations together.

  • Finding machines: location and movement alerts solve the daily “where is the breaker” problem.
  • Utilisation and hire records: needs hours the machine can defend.
  • Service scheduling: hours plus activity so servicing follows use.
  • Out-of-hours movement: movement alert plus last known position for theft protection.

On an excavator, the service compartment or engine bay protects the unit but can block signal; where the machine exposes CAN/J1939, hours and selected parameters can be read directly. Without a verified source or interface, hours may be unavailable; powered-on time is only conditional on an agreed signal. For a mixed-fleet brief that separates powered machines, attachments and existing OEM data, use the heavy equipment GPS tracking guide before choosing a device class.

Procurement guide

Specify and validate machinery tracking

Compare quotes by machine group and data source

Separate the fleet by machine category, make, model and year, then note the operating country, power supply and installation constraints for each group. Ask suppliers to identify the proposed hardware and accessible data source. A location report answers where a machine is; it does not by itself establish true engine hours or productive work. If hours are required, clarify whether the proposed source is a verified controller value, an agreed ignition-derived powered-time estimate or a manual reading. Request like-for-like quotations that identify hardware, accessories and any installation, mapping or platform work as separate scope items.

Check CAN/J1939 and platform mapping before approval

Do not infer CAN or J1939 access from a machine brand or connector alone. Confirm availability for the exact machine and year with the equipment or service owner, and establish any access permission and interface details before choosing a gateway. The platform owner should confirm field mapping, units, timestamps, resets and missing readings. Use the existing-platform integration checklist to record the model, firmware, receiving protocol and required fields. Keep these items conditional until the intended source and platform path are checked. If only a power signal is available, label the result as powered-on time rather than machine-counter hours.

Accept samples by machine category

Agree sample checks by machine category for power, mounting, source values and platform display. Compare readings with a known machine counter or agreed on/off periods, and record gaps or resets before deciding whether the category passes. The buyer approves the functional scope and batch quantity; the manufacturer supplies the hardware and model-specific documents; the installer confirms safe fitment; and the platform owner handles field mapping. LEXUNYU coordinates supplier comparisons, samples and OEM requirements without manufacturing devices or owning the platform. Request a review with the machine list, years, countries, data needs and proposed sample categories.

Discuss a machinery tracking project

Source, cost and ownership

Carry the machine value from its source to the office

PathComponents and limitsOwner and sample check
Machine counterUse a gateway only when the required controller field and interface are accessible. Existing portal access and field permission must be confirmed.The equipment owner authorizes safe access; the platform owner maps source, units and resets. Compare the office record with the machine counter.
Ignition-derived hoursA narrower terminal can calculate powered-on time from an agreed signal. It is not a machine counter or proof of productive work.The operator defines the useful rule; the installer confirms power and wiring. Compare known on/off periods, timestamps and gaps.
Manual readingA human-entered meter note remains a separate source. Optional fuel, temperature or implement sensors require their own interface and installation check.The customer names the recorder and review cycle. Keep manual and device values labelled separately during the sample.

Cost lines to assign: hardware and harness; installation and machine downtime; SIM/data; existing portal, API, licence or storage; calibration and optional sensors; mapping and support. The customer and implementation owner agree the definition, acceptable gaps and delay before rollout. Use the heavy-equipment guide for the deeper mixed-machine path.

Commercial terms

Commercial terms worth settling first

SpecificationValue
Minimum orderStandard products have no minimum order quantity. For customization, the applicable minimum depends on the model, manufacturer and scope. Sample availability, price and delivery timing are confirmed separately.
Lead timeConfirmed by model, configuration and order quantity.
Warranty12-month limited warranty from the shipment date shown on the commercial invoice. For A300 samples, report faults on arrival within 7 days of delivery; see the sample warranty and return policy. Other order terms are confirmed in the quote.
CertificationDocuments are available for selected models; applicable marks are confirmed for the specific model and destination market.
Reply time (written)We reply within one working day.
Frequently asked questions

Frequently asked questions

Choosing the hardware

How do plant machinery trackers work?

A tracker combines a positioning receiver, cellular modem, power circuit and, on some models, a machine interface. It fixes position from satellites, reads machine state from an input or CAN/J1939 connection, and transmits over cellular on an interval or event.

Can a tracker read engine hours from any construction machine?

No. True engine hours require the machine to expose the parameter through a verified source interface and platform mapping. If an agreed power or ignition signal is available and configured, a tracker may report powered-on time; without that verified source, hours may be unavailable.

Where should the tracker go on an excavator?

Usually the service compartment or engine bay, for protection and security. Because that position can block satellite signal, an external or relocated antenna may be part of the installation.

Do construction machines need a different device from road vehicles?

Generally yes. Supply voltage, vibration, wash-down exposure and long idle periods push towards a rugged unit with a mounting method suited to plant.

How are attachments and non-powered plant tracked?

With battery devices, since there is no permanent supply. The trade-off is reporting frequency against standby life, decided per asset class.

What if the site has poor cellular coverage?

Band support for the region and the ability to buffer readings until signal returns should be tested on the actual site.

Ordering and support

What is the minimum order quantity?

Standard products have no minimum order quantity. For customization, the applicable minimum depends on the model, manufacturer and scope. Sample availability, price and delivery timing are confirmed separately.

How long is the lead time?

Confirmed by model, configuration and order quantity. A configured order and a stock item are not the same lead time.

What warranty applies?

A 12-month limited warranty from the shipment date shown on the commercial invoice.

Can the data go into our existing platform?

Where the model supports it, yes. We confirm that capability per model before you commit.
